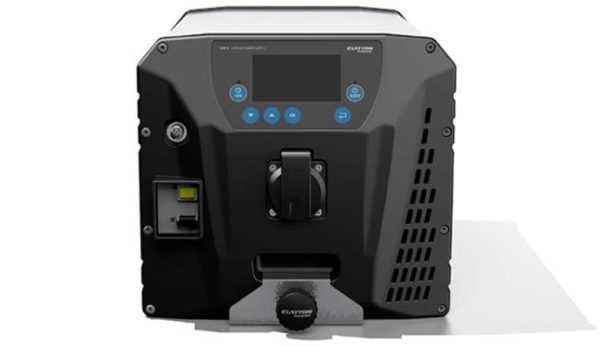

Model No. CL2003

Battery type Li-Ion 12V – 160Ah

Battery chemistry LiFePO4

Battery capacity 160Ah (1320Wh)

Battery available capacity 134Ah (1900Wh)

AC Input voltage 207 VAC – 253 VAC

AC input frequency 45 Hz – 65 Hz

AC Input power (Charge power) 720 W

AC Output voltage +- 10%

230 VAC pure sine wave

AC Output frequency 50 Hz

AC output power – Continuously (ambient temp) 2300

AC output power – 10 min  3000 w

AC output power – Peak 5000 w

AC output power – AC In connected 3000 W

AC output efficiency (1000W) 94%

DC Input voltage 11,5 – 32 VDC

DC input current 45 A

DC input current with 1 external converter (efficiency) 90 A

DC output voltage 10-14,4 VDC DC output charge current – Continuously 90A

DC output discharge current – Continuously  180A

DC output discharge current – 1 min. 350A

Solar input charging power (max.) 400W

Solar input voltage  15 – 50 V

DC Solar input charging current (max.) 15 A

Input signals (5) C1, C2, M12 x 3

Output signals (4) C2 & M12 x 3

Self-discharge rate per month < 5%

Self consumption – Operating mode, Only DC Output active < 1 W

Self consumption – Operating mode, inverter and DC Output in with > 50W 30 W

Product weight 27,5 kg

Product dimensions (HxWxL) 256x277x409mm Jumpstart 40 A / 5 min

.
